201 single core | $192.00 |
| 304 single core | $240.00 |
| 201 double cores | $264.00 |
| 304 double cores | $330.00 |

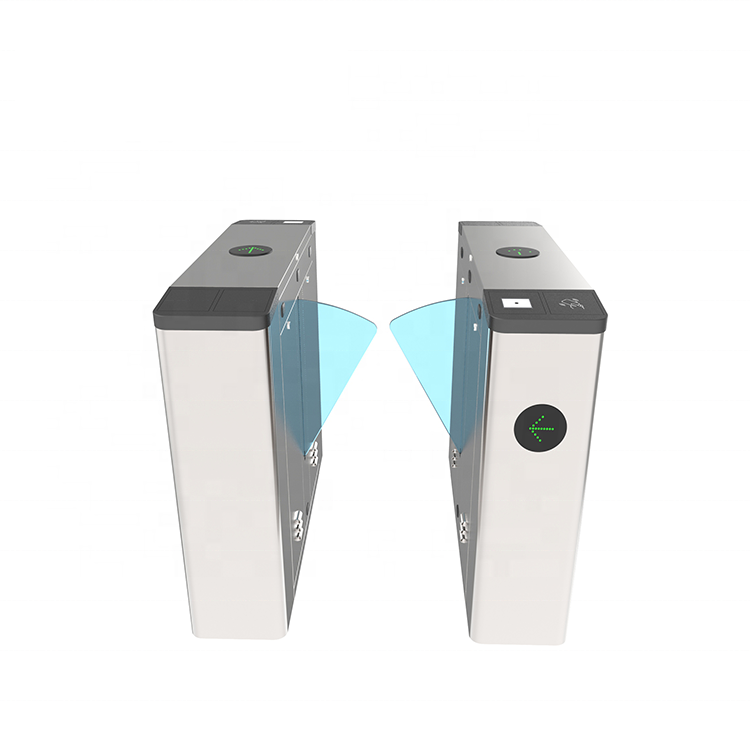

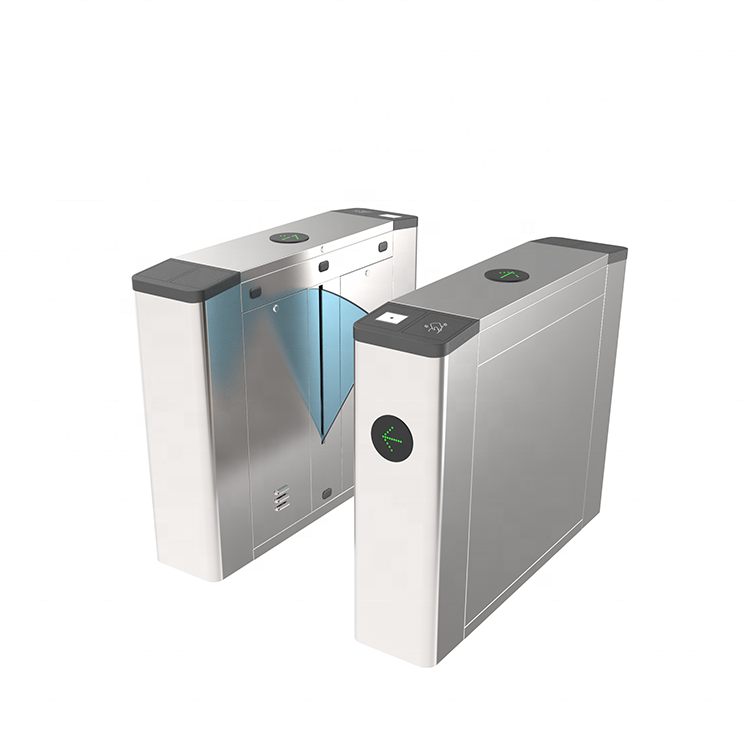

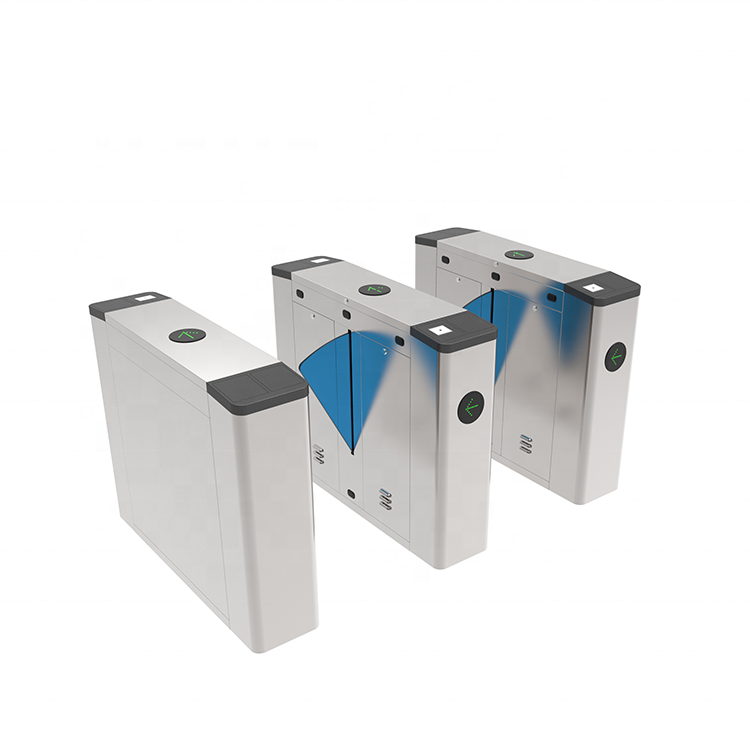

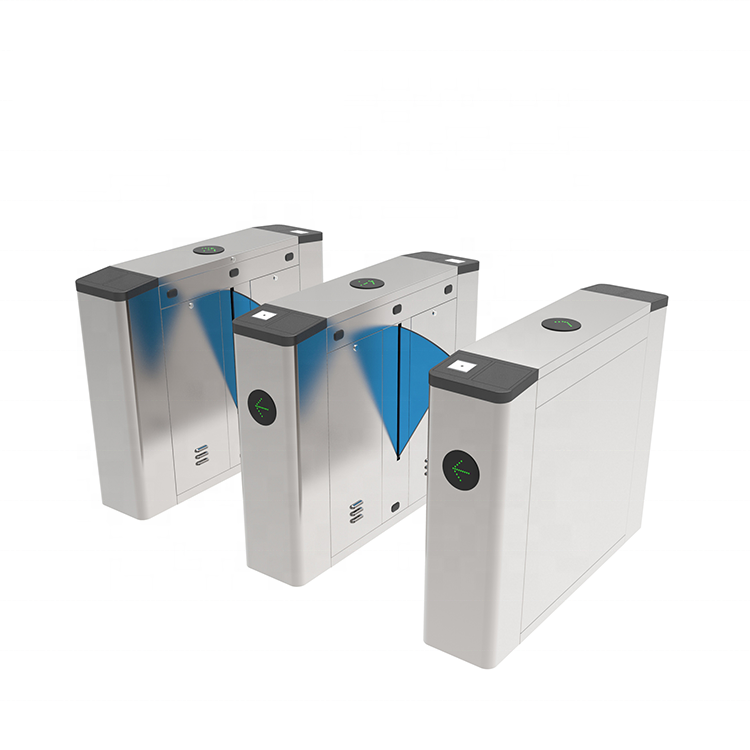

| Model | LV129 |
| Size | 1200x280x980mm |
| Material | 1.2mm/1.5mm SUS304 Hairline 400 |
| Pass Width | 550mm |
| Pass rate | 35-40 persons/minute |
| Operating time | 0.2 seconds |
| Power input | AC100-240V,50/60HZ |
| Working voltage | 24V |
| Working humidity | 30%~95% |
| Working temperature | -40℃~+70℃ |
| Communication interface | Dry contact |
| Mechanism | Solenoid lock |
| MCBF | 5,000,000 cycles |
| Application | Security Access Control Management |
1 How do you do afersale service?
We provide lifetime technology support on line, by emails, video, phone etc. We have engineer speaking En-
glish, convenient to communicate with you directly.
2. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment
3. How about the lead time?
Nomally we have stock for the hot sale models of standard products.
Regular products need 7-10 working days.
The customized products need 15-20 working days.
4. How long is your warranty period?
One-year guarantee & Life-time technology support.
5. How about your package?
Seaworthy wooden case + Foam.
